Technical Parameters

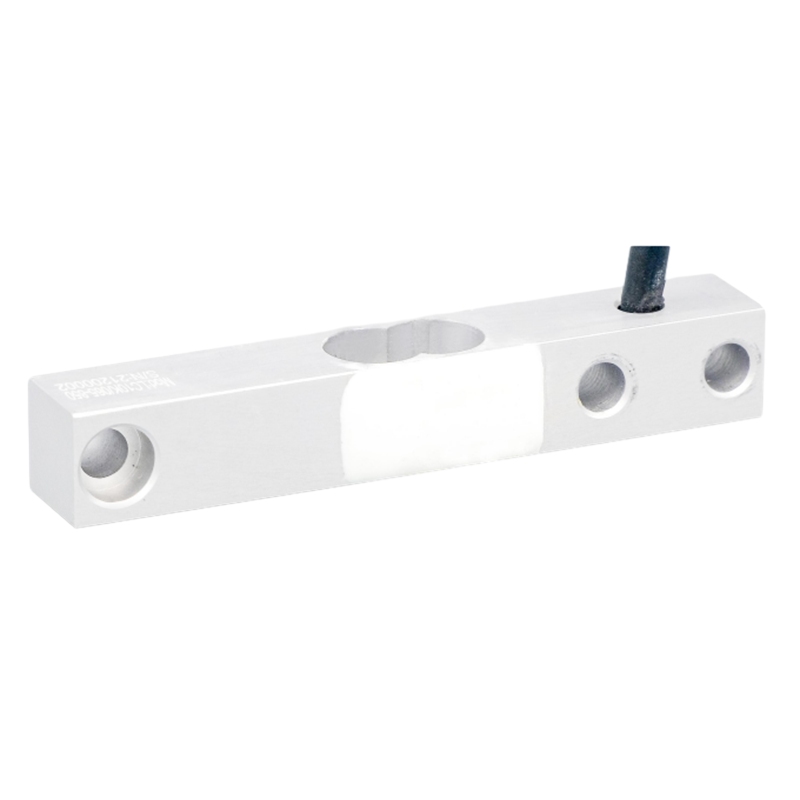

RJ- 6512
Weighing sensor, aluminum alloy material, surface anodizing treatment, silicone rubber sealing
Classification:
Detailed Description
● Weight Sensor
● Aluminum Alloy Material
● Surface Anodized Treatment
● Silicone Rubber Seal
| Measuring Range | Kg | 1/5/10/20/25 |
| Sensitivity | mV/V | 1.0±0.2 |
| Comprehensive Error | %FS | 0.02 |
| Creep | %FS | 0.02 |
| Non-linearity | %FS | 0.02 |
| Hysteresis | %FS | 0.02 |
| Repeatability | %FS | 0.02 |
| Input Impedance | Ω | 395±30 |
| Output Impedance | Ω | 350±10 |
| Insulation Resistance | M Ω | ≥5000 (100VDC) |
| Zero Balance | %FS | ±2 |
| Temperature Effect on Output | %FS/10℃ | 0.02 |
| Temperature Effect on Zero | %FS/10℃ | 0.017 |
| Compensation Temperature Range | ℃ | -10～+40 |
| Operating Temperature Range | ℃ | -20～+60 |
| Recommended Excitation Voltage | V | 6～12 |
| Allowable Excitation Voltage | V | 3～15 |
| Safe Overload | %FS | 150 |
| Limit Overload | %FS | 300 |
| Protection Level | IP65 | |
| Cable Specification | mm | Φ3.8UL |
| Cable Length | m | 0.4~1 |
| Material | Aluminum Alloy |

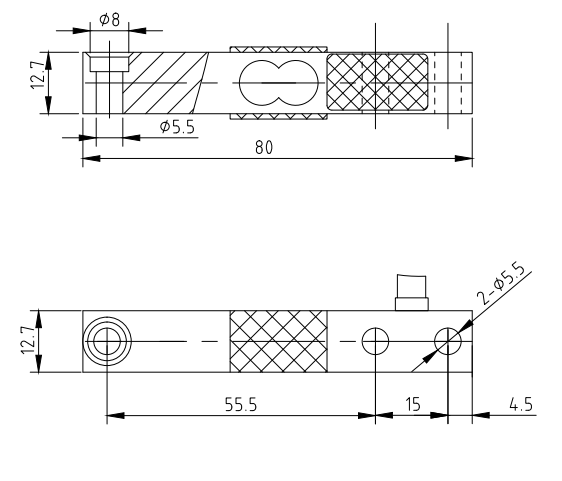

Dimensions (mm)
Cable Specification
