Technical parameters
RJ-65123
High-precision weighing sensor, aluminum alloy material, silicone rubber seal, electronic weighing system
Classification:
Detailed Description
● High precision weighing sensor
● Aluminum alloy material
● Silicone rubber seal
● Electronic weighing system
Measuring range | Kg | 0.5 |
Sensitivity | mV/V | 1.0±0.2 |
Accuracy | %FS | ±0.05 |
Creep | %FS | ±0.02 |
Input impedance | Ω | 1090±30 |
Output impedance | Ω | 1000±5 |
Insulation resistance | MΩ | ≥5000 (100VDC) |
Zero balance | %FS | ±2 |
Temperature effect on sensitivity | %FS/10℃ | ±0.05 |
Temperature effect on zero | %FS/10℃ | ±0.05 |
Compensation temperature range | ℃ | 0～+40 |
Operating temperature range | ℃ | -10～+60 |
Recommended excitation voltage | Vdc | 6～12 |
Permissible excitation voltage | Vdc | 18 |
Safe overload | %FS | 120 |
Limit overload | %FS | 150 |
Protection level |
| IP65 |
Material |
| Aluminum Alloy |

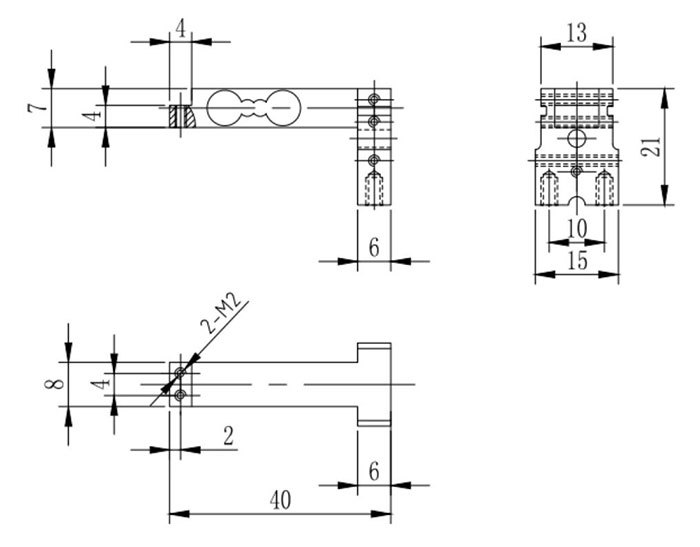

Dimensions (mm)

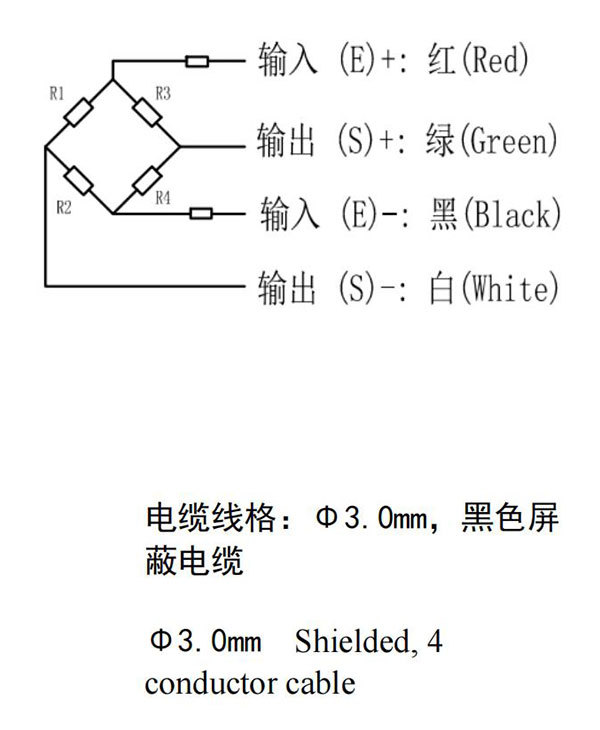

Circuit connection
