Technical parameters

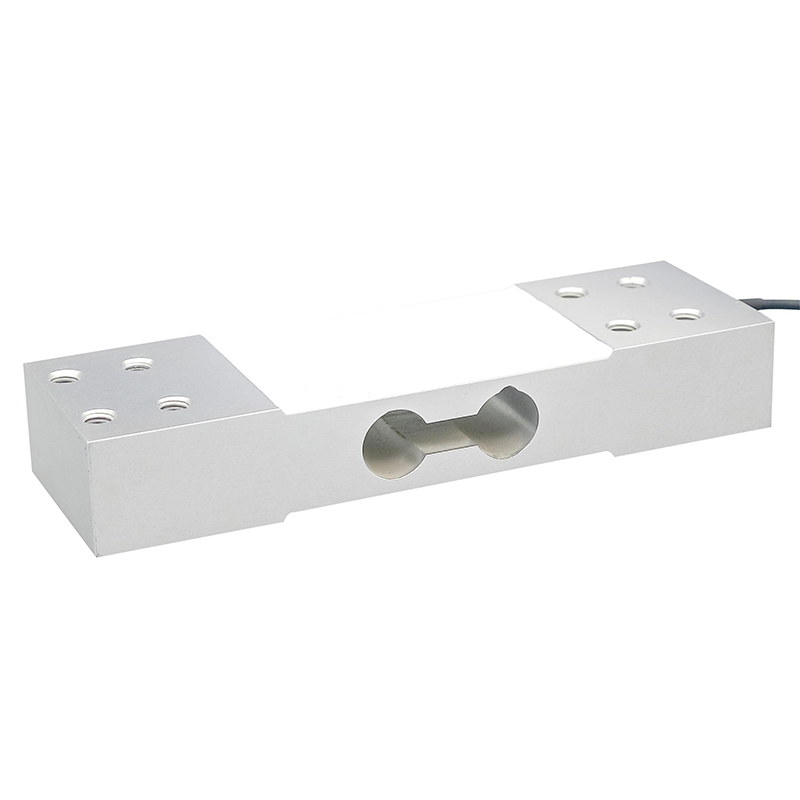

RJ-6551
High-precision weighing sensor, aluminum alloy material, surface anodized treatment, silicone rubber sealing, suitable for platform scales and electronic weighing systems.
Classification:
Detailed Description
● High precision weighing sensor
● Aluminum alloy material
● Surface anodized treatment
● Silicone rubber seal
● Suitable for platform scales
● Electronic weighing system
Measuring range | Kg | 100/200/300/400 |
Sensitivity | mV/V | 2.0±0.2 |
Accuracy |
| ±0.02 |
Creep | %FS | ±0.02 |
Input impedance | Ω | 406±20 |
Output impedance | Ω | 350±5 |
Insulation resistance | M Ω | ≥5000（100VDC） |
Zero balance | %FS | ±1 |
Temperature effect on sensitivity | %FS/10℃ | ±0.02 |
Temperature effect on zero | %FS/10℃ | ±0.02 |
Compensation temperature range | ℃ | -10～+60 |
Operating temperature range | ℃ | -20～+80 |
Recommended excitation voltage | V | 5～12 |
Allowable excitation voltage | V | 18 |
Safe overload | %FS | 120 |
Limit overload | %FS | 150 |
Protection level |
| IP65 |
Cable specifications | mm | Ф5 |
Cable length | m | 2 |
Material |
| Aluminum Alloy |

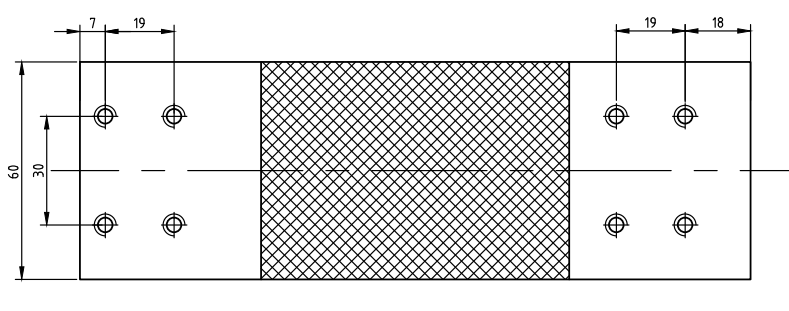

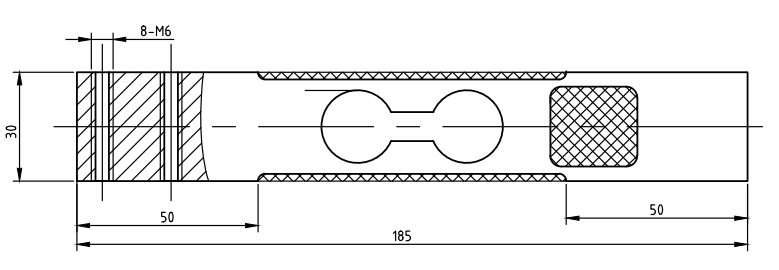

Dimensions (mm)

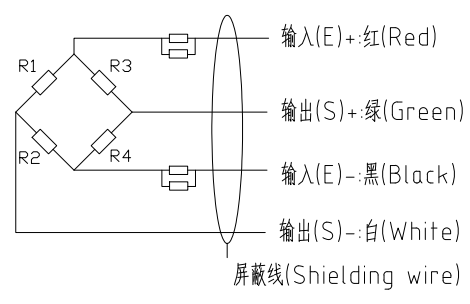

Circuit connection
