Technical parameters

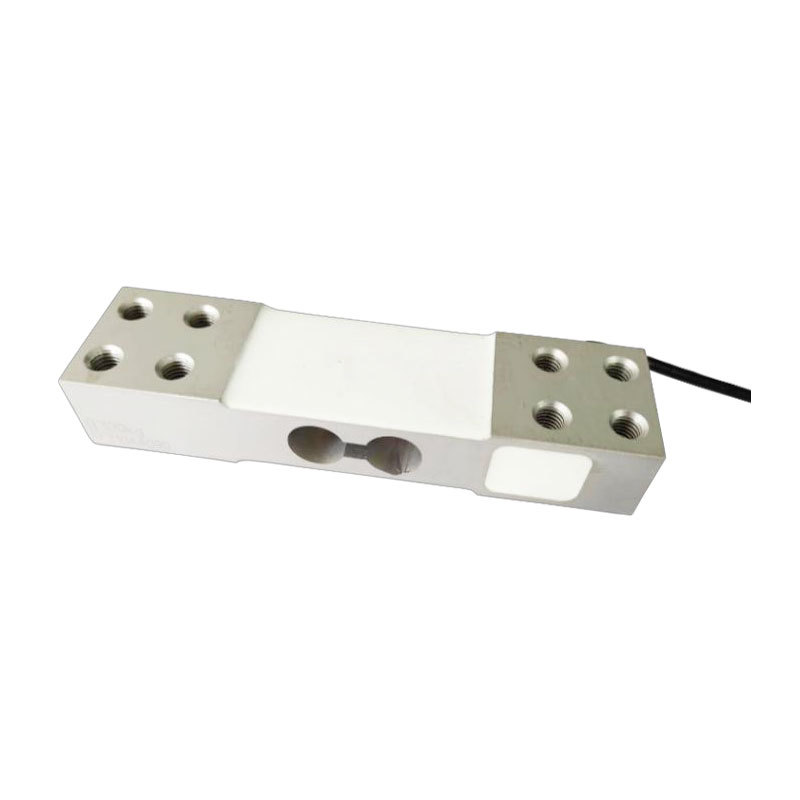

RJ-6544
High-precision weighing sensor, aluminum alloy material, surface anodizing treatment, silicone rubber sealing, electronic weighing system
Classification:
Detailed Description
● High precision weighing sensor
● Aluminum alloy material
● Surface anodized treatment
● Silicone rubber seal
● Electronic weighing system
Measuring range | Kg | 50\100\150\200\300 |
Sensitivity | mV/V | 2.0±0.2 |
Accuracy | %FS | ±0.02 |
Creep | %FS | ±0.015 |
Input impedance | Ω | 406±30 |
Output impedance | Ω | 350±5 |
Insulation resistance | M Ω | ≥5000（100VDC） |
Zero balance | %FS | ±2 |
Temperature effect on sensitivity | %FS/ 10℃ | ±0.02 |
Temperature effect on zero | %FS/ 10℃ | ±0.02 |
Compensation temperature range | ℃ | -10～+60 |
Operating temperature range | ℃ | -20～+80 |
Recommended excitation voltage | Vdc | 6～12 |
Allowable excitation voltage | Vdc | 18 |
Safe overload | %FS | 120 |
Limit overload | %FS | 150 |
Protection level | IP65 | |
Cable specification | mm | Ф4 |
Cable length | m | 2 |
Material | Aluminum Alloy | |

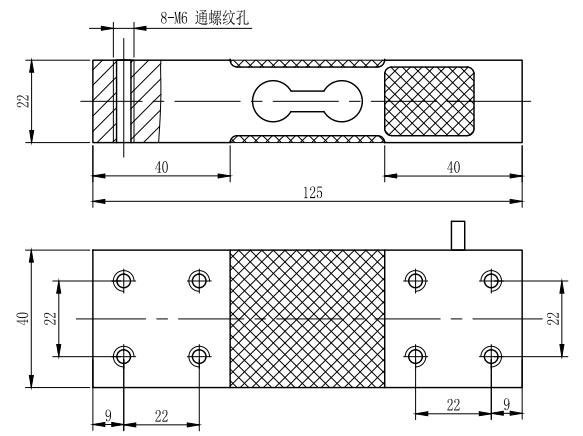

Dimensions (mm)
Circuit connection
