Technical Parameter

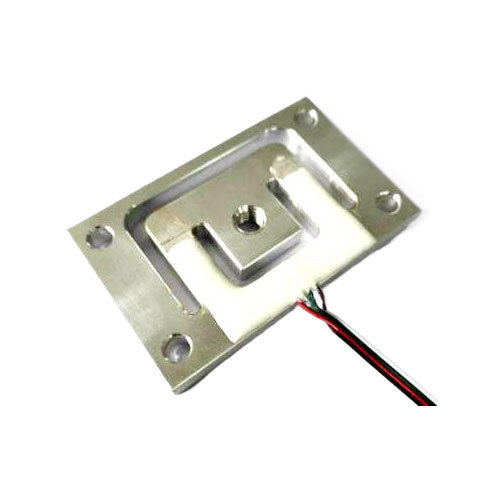

RJ-6610
Aluminum alloy material, Surface anodizing treatment, Silicone rubber seal, Electronic weighing system
Classification:
Detailed Description
● Aluminum alloy material
● Surface anodizing treatment
● Silicone rubber seal
● Electronic weighing system
Capacity | Kg | 10/50/100/200 |
Sensitivity | mV/V | 1.5±0.2 |
Accuracy | %FS | ≤±0.1 |
Creep（15min) | %FS | ≤±0.02 |
Input Resistance | Ω | 750±30 |
Output Resistance | Ω | 700±10 |
Insulation Resistance | MΩ | ≥5000（100VDC） |
Zero Balance | %FS | ≤±1 |
Temperature Effects on Span | %FS/10℃ | ≤0.05 |
Temperature Effect on Zero | %FS/10℃ | ≤0.05 |
Rated Temperature Range | ℃ | -10～+60 |
Operating Temperature Range | ℃ | -20～+80 |
Proposed Excitation Voltage | V | 6～12 |
Allowed Excitation Voltage | V | 18 |
Safe Overload | %FS | 120 |
Ultimate Overload | %FS | 150 |
Protection | IP65 | |
Cable specification | mm | Ф5 |
Cable length | m | 2 |
Material | Aluminum Alloy |
Overall dimensions(mm)

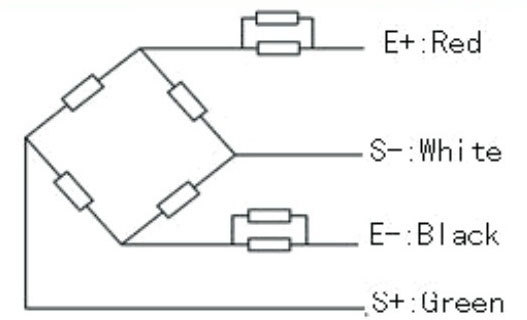

Circuit connection
Cable specifications
Cable specifications：Ф5mm 4-core black shielded cable
Cable length：1m
