Technical parameters

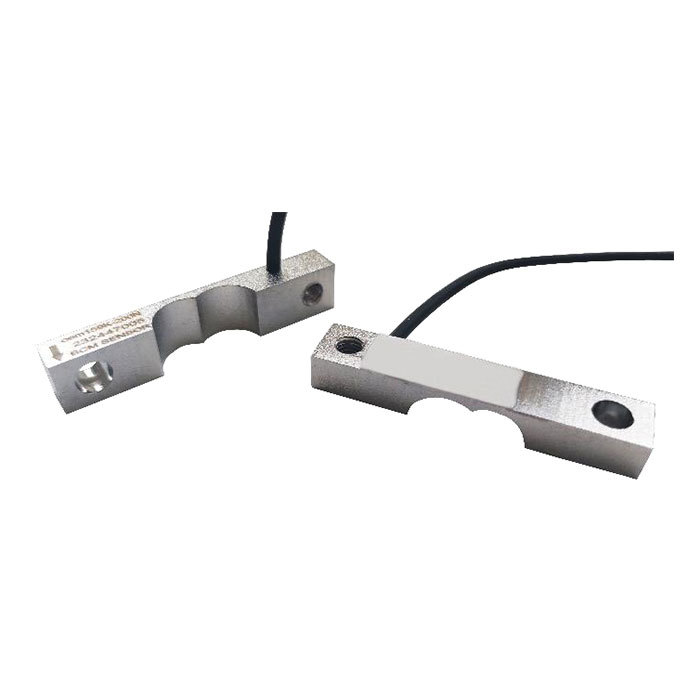

RJ-8159K
High-precision weighing sensor, stainless steel material, silicone rubber seal, electronic weighing system
Classification:
Detailed Description
● High precision weighing sensor
● Stainless steel material
● Silicone rubber seal
● Electronic weighing system
Measuring range | Kg | 20 |
Sensitivity | mV/V | 2.0±0.2 |
Accuracy | %FS | ±0.1 |
Creep | %FS | ±0.06 |
Input impedance | Ω | 1000±30 |
Output impedance | Ω | 1000±10 |
Insulation resistance | M Ω | ≥5000 (100VDC) |
Zero balance | %FS | ±3 |
Temperature effect on sensitivity | %FS/10℃ | ±0.05 |
Temperature effect on zero | %FS/10℃ | ±0.05 |
Compensation temperature range | ℃ | -10～+40 |
Operating temperature range | ℃ | -20～+60 |
Recommended excitation voltage | Vdc | 6～12 |
Permissible excitation voltage | Vdc | 18 |
Safe overload | %FS | 120 |
Limit overload | %FS | 150 |
Protection level | IP65 | |
Material | Stainless Steel | |
Dimensions (mm)
Circuit connection
